You’ve placed your order, finalized the paperwork, and your brand-new AHM AX-12 is ready for pickup. Or maybe you’ve got a list of chores at your brother-in-law’s property across town. The machine is sitting in your driveway, and now comes the logistical question: “How am I going to haul this thing safely?”

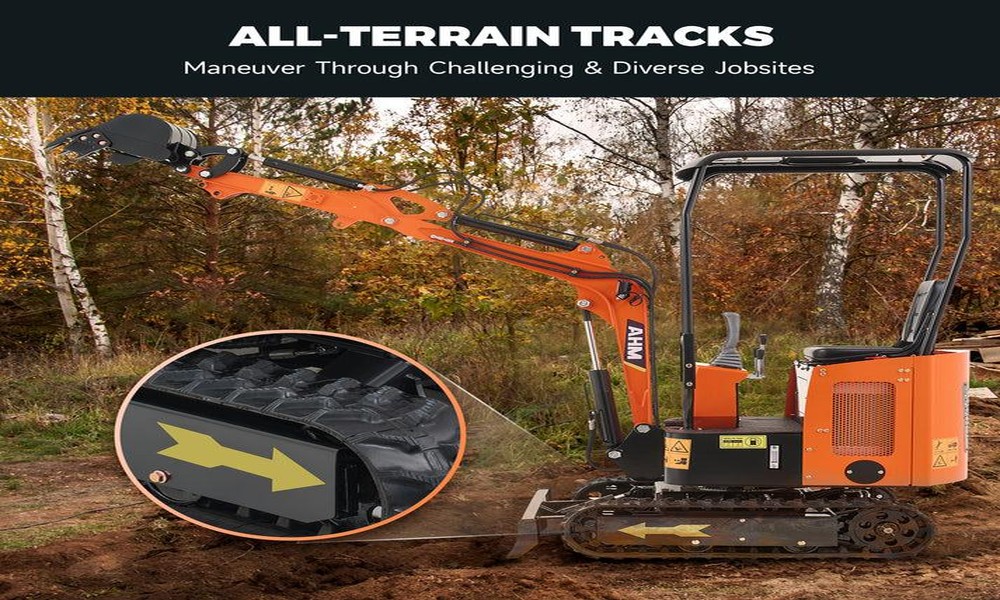

One of the greatest advantages of a 1-ton mini excavato r like the AX-12 is its portability. Unlike massive 5-ton commercial units that require a heavy-duty commercial truck, the AX-12 can be transported easily-if you have the right setup.
At AHM, we want to make sure you get from Point A to Point B legally and safely. Let’s look at the exact trailer and truck specs you need to haul your AX-12 without breaking a sweat (or a suspension).
1. The Math: Understanding the Weights
Before you hitch up any trailer, you have to look at the numbers. To calculate your towing needs, you have to combine the weight of the machine, any attachments, and the trailer itself.
- AHM AX-12 Weight: Roughly 2,200 lbs (varies slightly by fluid levels and bucket size).
- Attachments (Thumb, Auger, Rake): Add a buffer of 300 lbs.
- Average Utility Trailer Weight: Roughly 1,500 to 1,800 lbs.
- Total Towing Weight: ~4,000 to 4,300 lbs.
What does this mean for you? It means you do not need a 3/4-ton heavy-duty truck. A standard half-ton pickup truck (like an F-150, Chevy 1500, or Ram 1500) or even a properly equipped mid-size SUV can safely pull this load, as most are rated for 5,000 to 7,000+ lbs.
2. Choosing the Right Trailer: The Golden Specs
Do not try to load your AX-12 onto a cheap, single-axle landscape trailer meant for a riding lawnmower. It might look like it fits, but the concentrated weight of an excavator will quickly overwhelm a flimsy frame or light-duty tires.
Look for a trailer that hits these criteria:
- Axle Type: Tandem Axle (Dual Axles). Look for a trailer with two 3,500 lb axles (a 7,000 lb total Gross Vehicle Weight Rating, or GVWR). This gives you a massive safety margin, better stability at highway speeds, and smoother handling if you hit a pothole.
- Deck Size: At least 6′ x 12′ or 7′ x 14′. While the tracks of the AX-12 are under 3 feet wide, you need the extra length to stretch out the boom and arm so you can rest the bucket flat on the deck.
- Gate/Ramps: Heavy-duty steel ramps or a reinforced mesh rear gate.
- Brakes: Ensure the trailer has electric brakes on at least one axle. Most states legally require trailer brakes for loads over 3,000 lbs.
3. Pro-Tips for Safe Loading and Tie-Downs
Once you have the right trailer, how you secure the AX-12 is what keeps you legal and keeps the machine from shifting during travel.
- The Balance Test: Drive the machine onto the trailer forward. You want the heaviest part of the excavator (the engine cab) sitting slightly in front of the trailer axles to put tongue weight on your truck. If the back of your truck starts sagging completely, it’s too far forward; if the truck feels like it’s being lifted up, the machine is too far back.
- Lower the Attachments: Drop the front dozer blade flat onto the trailer deck. Extend the boom and rest the bucket flat on the deck as well.
- The 4-Point Tie Down: Use heavy-duty, rated ratchet straps or transport chains. Secure the machine at four separate points-two on the front of the track frame and two on the rear chassis. Never strap down over the hydraulic cylinders or the boom arm itself!
Trailer Compatibility Checklist
| Trailer Feature | Minimum Required | Recommended for AHM AX-12 |
|---|---|---|
| GVWR (Total Capacity) | 5,000 lbs | 7,000 lbs (Tandem Axle) |
| Dimensions | 5′ x 10′ | 6′ x 12′ or 7′ x 14′ |
| Tie-Down Points | 4 standard D-rings | 4 heavy-duty welded D-rings |
| Hitch Ball Size | 2-inch | 2-inch or 2-5/16 inch |
The Ultimate Benefit: Flexibility
The absolute best part about the AX-12’s lightweight design is that it keeps your total combined truck-and-trailer weight well below the 26,000 lb limit that requires a Commercial Driver’s License (CDL). Anyone with a standard driver’s license and a standard pickup truck can hitch up an AX-12 and hit the road.
What are you currently driving? Tell us your truck model and what trailer you have in your yard, and our team will let you know if you’re ready to haul your new AHM home!
